Adroit
systems
D.C.

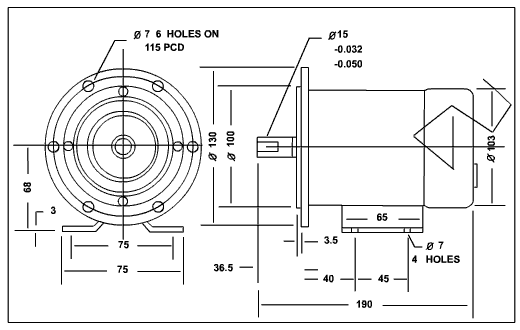

TACHOGENERATORS SPECIFICATION
Model
Field
Speed Range
Rated Output
Max. Current
Non-Linearity
Volt. Regulation
Ripple (max)
at 2000 rpm
Inductance
Arm. Resistance
Enclosure type
Insulation class
Amb Temperature
Mounting
Weight
:
TG 7457 DC
: Permanent Magnets
: 0 to 4000 rpm
:200 Volts DC + / - 3%
:100 mA.
: less than 0.5%
: better than 3%
: <2% peak to peak of
: average DC output.
: less than 103 mh
: less than 60
: Totally enclosed IP 44
: B class
: upto 65 C
: Flange / foot mount.
: 4 kgs.
